The Creamery - Custom Guitars, Handwound Boutique Pickups - Made in Manchester  -  Vintage, Modern, Custom & Alternative Design Pickups - Made in Manchester

Rickenbacker® Style Pickups


Vintage, Modern & Custom Replacement Ric®, Rickenbacker® & Toaster® Style Pickups

From the classic bright, attacking jangly sounds to fatter, crunchier & humbucker designs I've tried to create Ric® & Toaster® style pickups & sets that chime with certain sounds & periods in music. I can also make them custom to you & your style of play - If that means over/underwinding a little, different outputs, different magnet types etc etc then no problem, it can be done - they're your pickups, for your guitar.

Custom, Handwound Replacement Ric® Rickenbacker® & Toaster® Style Pickups pickups from The Creamery.

Low '57

Low '57

The classic, late '50s bright, jangly Ric® single coil sound in a Toaster® style design.

Read more

Mid '63 Bass Humbucker

Mid '63 Bass Humbucker

The classic Ric® punchy bass sound in a Toaster® style or open face hum-cancelling design.

Read more

High '68 Humbucker

High '68 Humbucker

The fatter, higher output late '60s Ric® sound in a hum-cancelling design - Toaster® or open face style.

Read more

Mid '63

Mid '63

The classic, bright, jangly mid '60s Ric® single coil sound in a Toaster style design.

Read more

High '68

High '68

The fatter, higher output, late '60s Ric® style single coil sound but in either Toaster® style or open face.

Read more

Low '57 Humbucker

Low '57 Humbucker

The classic, late '50s bright, jangly Ric® sound in a hum-cancelling design - Toaster® or open face style.

Read more

Custom Replacement Ric®, Rickenbacker®, Toaster® Style Pickups

Custom Handwound Replacement Ric®, Rickenbacker® & Toaster® Style Pickups

Vintage, Modern & Alternative Designs - Custom Handwound Replacement Pickups for your Ric® Guitar

Custom Handwound Replacement Ric®, Rickenbacker® & Toaster® Style Pickups - Online Custom StoreFrom the vintage bright, jangly sounds of the 50's originals, through the higher output '60s versions to modern & humbucker replacements, my Ric® & Toaster® style pickup range has been designed for a variety of sounds & playing styles - from clear, bright and well defined voices to modern, higher output versions.

My replacement Rickenbacker® style pickups are all handwound here in my workshop. Each pickup is wound at slowish speed with vintage correct thin 44AWG coil wire for my take on the original designs and can be wax-potted in a measured combination of beeswax and paraffin to cut down on microphonics.

I wind all replacement Ric® style Humbucker Pickups with a small, specific coil offset to open up more frequencies. A humbucker by nature cancels some of the buzz you get with 60 cycle hum but in doing so a whole lot of other frequencies are shut out too which can lead to a somewhat sterile sound. I claw some of these frequencies back through custom winding on a machine I designed & built myself.

If you're after a custom set of replacement Rickenbacker® or Toaster® style Pickups, just get in touch with details of the kind of voice/output you're after and I can work on the best design for you. I don't have pickups all boxed up ready to send out, each order is custom made so I can tweak the specifications to suit your own guitar & playing.

Handwound at my workshop here in Manchester


Use the tabs below to view the full range of Creamery Handwound Replacement Ric®, Rickenbacker® & Toaster® style Pickups.


For prices, just head straight to the online Custom Handwound Replacement Ric®, Rickenbacker® & Toaster® Style Pickups Store.



Classic

Replacement Ric® Rickenbacker® Style Pickups

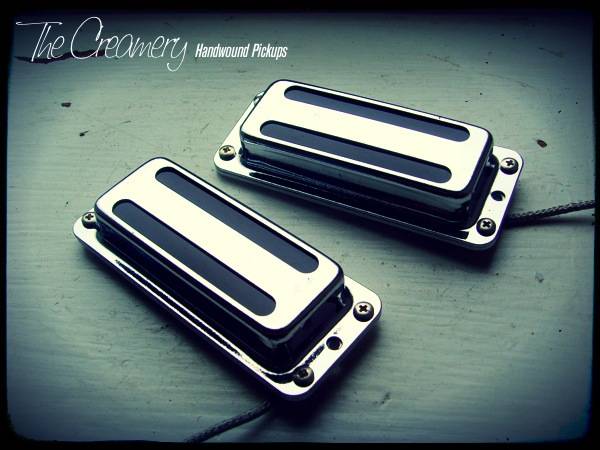

Low '57

Creamery Custom Replacement Ric Rickenbacker Low 57 Pickup

Magnets Tall 1/4" Diameter Individual Alnico 5 Rods
Coil Wire 44AWG
Lead Wire 2 Way with Separate Ground for Cover & Baseplate
Bridge Output 5.0k
Neck Output 4.5k



Creamery Custom Ric® Replacement Low '57 Pickup

The Classic, Late '50s Bright, Jangly Ric® Single Coil Sound

The classic 50's jangle & chime - That bright, jangly, unique sound that cuts straight through the mix.

Bright, tight with great clarity and definition I make my Low '57 Ric® style replacements calibrated with a slightly lower neck pickup output for good volume balance through the positions though do offer them as a more vintage correct set with matching Bridge & Neck outputs.

The thinner 44AWG wire helps give a little more mid-range than the low output would usually dictate and when combined with the tall, strong 1/4" diameter Alnico 5 rod magnets that protrude through the bottom of the pickup, you get that classic, rich, late '50s / early '60s sound.

Toaster® pickups from the '50s tended to have the lower 4.8k-5.0k output whereas into the '60s, the output was increased a little to around 7.5k - So with this in mind you can choose which version you'd like. The 5.0k Low '57 version will sound that little brighter, a little lower in volume than the Mid '63 so if you're after the late '50s sound then go for the Low '57. If you're after that early/mid '60s sound then go for the medium output Mid '63. Both have that sweet, bright sound, the Medium output version being that little fatter, that little bit rounder.








Replacement Ric® Rickenbacker® Style Pickups
Mid '63

Creamery Custom Replacement Ric Rickenbacker Mid 63 Pickup

Magnets Tall 1/4" Diameter Individual Alnico 5 Rods
Coil Wire 44AWG
Lead Wire 2 Way with Separate Ground for Cover & Baseplate
Bridge Output 7.5k
Neck Output 7.0k



Creamery Custom Ric® Replacement Mid '63 Pickup

The Classic, Bright, Jangly Mid '60s Ric® Single Coil Sound

The classic 60's jangle & chime - Still that bright, jangly, unique sound a little sweeter, a little rounder than the Low '57.

Bright, tight with great clarity and definition I make my Mid '68 Ric® style replacements calibrated with a slightly lower neck pickup output for good volume balance through the positions though do offer them as a more vintage correct set with matching Bridge & Neck outputs.

The thinner 44AWG wire helps give a little more mid-range than the low output would usually dictate and when combined with the tall, strong 1/4" diameter Alnico 5 rod magnets that protrude through the bottom of the pickup, you get that classic, rich, early/mid '60s sound - with slightly rolled back highs, a little more in the mid-range than the Low '57.

Toaster® pickups from the '50s tended to have the lower 4.8k-5.0k output whereas into the '60s, the output was increased a little to around 7.5k - So with this in mind you can choose which version you'd like. The 5.0k Low '57 version will sound that little brighter, a little lower in volume than the Mid '63 so if you're after the late '50s sound then go for the Low '57. If you're after that early/mid '60s sound then go for the medium output Mid '63. Both have that sweet, bright sound, the Medium output version being that little fatter, that little bit rounder.








Replacement Ric® Rickenbacker® Style Pickups
High '68

Creamery Custom Replacement Ric Rickenbacker High 68 Pickup

Magnets 1/4" Diameter Individual Alnico 5 Rods or Ceramic Bar
Coil Wire 44AWG
Lead Wire 2 Way with Separate Ground for Cover & Baseplate
Bridge Output 12.4k
Neck Output 10.6k



Creamery Custom Ric® Replacement High '68 Pickup

The Fatter, Higher Output, Late '60s Ric® Style Single Coil Sound but in either Toaster® style or Open Face Design

I wanted to make a version of the famous Rickenbacker® Hi-Gain Pickups but with more clarity & definition. The original & Modern reissue Hi-Gain pickup designs utilise a strong Ceramic bar magnet underneath and ferrous pole screws through the overwound coil and as well as making a great sounding modern reproduction, I also wanted to make a replacement that was more true to the original individual Alnico rod magnet design. With the much thinner 44AWG coil wire comes more mid-range, especially in such an overwound coil and after many, many prototypes, I signed off these final designs & specifications.

Available in either Toaster® style covers with Alnico Rods or traditional open style with Ceramic Bar

I've had both sets of covers custom manufactured, the classic Toaster® style which is my personal favourite and the open face style cover or you can select a version truer to the original Hi-Gain pickup Specifications with Hex/Allen Bolts & Ceramic Bar Magnet in a chrome open-frame cover The Alnico Rod version is a little crunchier, a little brighter, a little punchier whereas the Ceramic Bar version a little dirtier, a little grittier.

Fatter, warmer that pushes the amp more, I've designed my own version of the famous Hi-Gain pickups again with a custom neck specification & pickup output for good volume balance through the positions.










Hum-Cancelling

Replacement Ric® Rickenbacker® Style Pickups
Low '57 Humbucker

Creamery Custom Replacement Ric Rickenbacker Low 57 Humbucker Pickup

Magnets Dual Alnico 5 Bar Magnets
Coil Wire 44AWG
Lead Wire Modern 4-Way
Bridge Output 5.0k
Neck Output 4.5k



Creamery Custom Ric® Replacement Low '57 Humbucker Pickup

The Classic, Bright, Jangly Ric® Sound in a Hum-Cancelling Design

I wanted to make hum-cancelling versions of my replacement Ric® Pickups and after working on many designs I just found the final sound was moving too far away from what makes Rickenbacker® guitars unique. So I simply went back to the drawing board and designed these, a dual hidden Alnico blade design based on each of my Ric® Single Coil rang.

Essentially a hum-cancelling version of my Low '57 - slightly fatter, crunchier than its single coil equivalent but still with that classic bright jangle.

With my replacement Ric® style hum-cancelling pickups, the coils are asymmetrically wound which helps more dynamics with a richer clarity & string definition. A rich, clear, hum-cancelling version of my Low '57.








Replacement Ric® Rickenbacker® Style Pickups
Mid '63 Humbucker

Creamery Custom Replacement Ric Rickenbacker Mid 63 Humbucker Pickup

Magnets Dual Alnico 5 Bar Magnets
Coil Wire 44AWG
Lead Wire Modern 4-Way
Bridge Output 7.5k
Neck Output 7.0k



Creamery Custom Ric® Replacement Mid '63 Humbucker Pickup

The Classic, Bright, Jangly Ric® Sound in a Hum-Cancelling Design

I wanted to make hum-cancelling versions of my replacement Ric® Pickups and after working on many designs I just found the final sound was moving too far away from what makes Rickenbacker® guitars unique. So I simply went back to the drawing board and designed these, a dual hidden Alnico blade design based on each of my Ric® Single Coil rang.

Essentially a hum-cancelling version of my Mid '63 - slightly fatter, crunchier than its single coil equivalent but still with that classic bright jangle with that little more mid-range than the Mid '63 version.

With my replacement Ric® style hum-cancelling pickups, the coils are asymmetrically wound which helps more dynamics with a richer clarity & string definition. A rich, clear, hum-cancelling version of my Mid '63.








Replacement Ric® Rickenbacker® Style Pickups
High '68 Humbucker

Creamery Custom Replacement Ric Rickenbacker High 68 Humbucker Pickup

Magnets Dual Alnico 5 Bar Magnets
Coil Wire 44AWG
Lead Wire Modern 4-Way
Bridge Output 12.4k
Neck Output 11.6k



Creamery Custom Ric® Replacement High '68 Humbucker Pickup

The Fatter, Higher Output Ric® Sound in a Hum-Cancelling Design

I wanted to make hum-cancelling versions of my replacement Ric® Pickups and after working on many designs I just found the final sound was moving too far away from what makes Rickenbacker® guitars unique. So I simply went back to the drawing board and designed these, a dual hidden Alnico blade design based on each of my Ric® Single Coil rang.

Essentially a hum-cancelling version of my High '68 - slightly fatter, crunchier than its single coil equivalent but still with that classic bright jangle with that little more mid-range than the High '68 version.

With my replacement Ric® style hum-cancelling pickups, the coils are asymmetrically wound which helps more dynamics with a richer clarity & string definition. A rich, clear, hum-cancelling version of my High '68.








Bass

Replacement Ric® Rickenbacker® Style Bass Pickups
Mid '63 Bass

Creamery Custom Replacement Ric Rickenbacker Mid 63 Bass Pickup

Magnets Tall 1/4" Diameter Individual Alnico 5 Rods
Coil Wire 44AWG
Lead Wire 2 Way with Separate Ground for Cover & Baseplate
Bridge Output 7.5k
Neck Output 7.0k



Creamery Custom Ric® Replacement Mid '63 Bass Pickup

The Classic, Early '60s Ric® Single Coil Bass Sound

The classic 60's tight bass sound in a traditional Toaster® style look.

The thinner 44AWG wire helps give a little more mid-range than the low output would usually dictate and when combined with the tall, strong 1/4" diameter Alnico 5 rod magnets that protrude through the bottom of the pickup, you get that classic, rich, early/mid '60s bass sound - with slightly rolled back highs, a little more in the mid-range.










Replacement Ric® Rickenbacker® Style Bass Pickups
Mid '63 Bass Humbucker

Creamery Custom Replacement Ric Rickenbacker Mid 63 Bass Humbucker Pickup

Magnets Dual Alnico 5 Bar Magnets
Coil Wire 44AWG
Lead Wire Modern 4-Way
Bridge Output 7.5k
Neck Output 7.0k



Creamery Custom Ric® Replacement Mid '63 Humbucker Pickup

The Classic Ric® Bass Sound in a Toaster® style Hum-Cancelling Design


I wanted to make hum-cancelling versions of my replacement Ric® Pickups and after working on many designs I just found the final sound was moving too far away from what makes Rickenbacker® guitars unique. So I simply went back to the drawing board and designed these, a dual hidden Alnico blade design based on each of my Ric® Single Coil rang.

Essentially a hum-cancelling version of my Mid '63 - slightly fatter, crunchier than its single coil equivalent but still with that classic bright jangle with that little more mid-range than the Mid '63 version.

With my replacement Ric® style hum-cancelling Bass pickups, the coils are asymmetrically wound which helps more dynamics with a richer clarity & string definition. A rich, clear, hum-cancelling version of my Mid '63.

Available in classic Toaster® or Open Face Style Covers








Humbucker Size

Replacement Ric® Rickenbacker® Style Pickups - Gibson/PAF/Humbucker Size
Ric® Toaster® Style - PAF Size

Creamery Custom Replacement Ric Rickenbacker Pickup - Gibson / PAF / Humbucker Size

Replacement Ric® Rickenbacker® Style Pickups - PAF Size


Choose from any of my classic Ric® style designs in a standard Gibson/PAF/Humbucker Size

I had a number of requests to design these classic Toaster® styles but to fit a standard Les Paul or dual Humbucker guitar so here they are.

All my Ric® style pickups in a standard Gibson / PAF / Humbucker size are available in traditional Toaster® style covers or alternativly, you can have them in closed chrome, nickel or even my Gold / Silver Foil designs - Plus more options available at the checkout.

Low '57

Magnets Tall 1/4" Diameter Individual Alnico 5 Rods
Coil Wire 44AWG
Lead Wire 2 Way with Separate Ground for Cover & Baseplate
Bridge Output 5.0k
Neck Output 4.5k

Creamery Custom Ric® Style Low '57 Pickup

The Classic, Late '50s Bright, Jangly Ric® Single Coil Sound

The classic 50's jangle & chime - That bright, jangly, unique sound that cuts straight through the mix.

Bright, tight with great clarity and definition I make my Low '57 Ric® style replacements calibrated with a slightly lower neck pickup output for good volume balance through the positions though do offer them as a more vintage correct set with matching Bridge & Neck outputs.

The thinner 44AWG wire helps give a little more mid-range than the low output would usually dictate and when combined with the tall, strong 1/4" diameter Alnico 5 rod magnets that protrude through the bottom of the pickup, you get that classic, rich, late '50s / early '60s sound.

Toaster® pickups from the '50s tended to have the lower 4.8k-5.0k output whereas into the '60s, the output was increased a little to around 7.5k - So with this in mind you can choose which version you'd like. The 5.0k Low '57 version will sound that little brighter, a little lower in volume than the Mid '63 so if you're after the late '50s sound then go for the Low '57. If you're after that early/mid '60s sound then go for the medium output Mid '63. Both have that sweet, bright sound, the Medium output version being that little fatter, that little bit rounder.




Mid '63

Magnets Tall 1/4" Diameter Individual Alnico 5 Rods
Coil Wire 44AWG
Lead Wire 2 Way with Separate Ground for Cover & Baseplate
Bridge Output 7.5k
Neck Output 7.0k

Creamery Ric® Style Mid '63 Pickup

The Classic, Early '60s Bright, Jangly Ric® Single Coil Sound

The classic 60's jangle & chime - Still that bright, jangly, unique sound a little sweeter, a little rounder than the Low '57.

Bright, tight with great clarity and definition I make my Mid '68 Ric® style replacements calibrated with a slightly lower neck pickup output for good volume balance through the positions though do offer them as a more vintage correct set with matching Bridge & Neck outputs.

The thinner 44AWG wire helps give a little more mid-range than the low output would usually dictate and when combined with the tall, strong 1/4" diameter Alnico 5 rod magnets that protrude through the bottom of the pickup, you get that classic, rich, early/mid '60s sound - with slightly rolled back highs, a little more in the mid-range than the Low '57.

Toaster® pickups from the '50s tended to have the lower 4.8k-5.0k output whereas into the '60s, the output was increased a little to around 7.5k - So with this in mind you can choose which version you'd like. The 5.0k Low '57 version will sound that little brighter, a little lower in volume than the Mid '63 so if you're after the late '50s sound then go for the Low '57. If you're after that early/mid '60s sound then go for the medium output Mid '63. Both have that sweet, bright sound, the Medium output version being that little fatter, that little bit rounder.




High '68

Magnets Tall 1/4" Diameter Individual Alnico 5 Rods or Ceramic Bar
Coil Wire 44AWG
Lead Wire 2 Way with Separate Ground for Cover & Baseplate
Bridge Output 12.4k
Neck Output 10.6k

Creamery Custom Ric® Style Replacement High '68 Pickup

The Fatter, Higher Output, Late '60s Ric® Style Single Coil Sound

I wanted to make a version of the famous Rickenbacker® Hi-Gain Pickups but with more clarity & definition. The original & Modern reissue Hi-Gain pickup designs utilise a strong Ceramic bar magnet underneath and ferrous pole screws through the overwound coil and as well as making a great sounding modern reproduction, I also wanted to make a replacement that was more true to the original individual Alnico rod magnet design. With the much thinner 44AWG coil wire comes more mid-range, especially in such an overwound coil and after many, many prototypes, I signed off these final designs & specifications.

Available in either Toaster® style with Alnico Rods or traditional open style with Ceramic Bar

Fatter, warmer that pushes the amp more, I've designed my own version of the famous Hi-Gain pickups again with a custom neck specification & pickup output for good volume balance through the positions.
