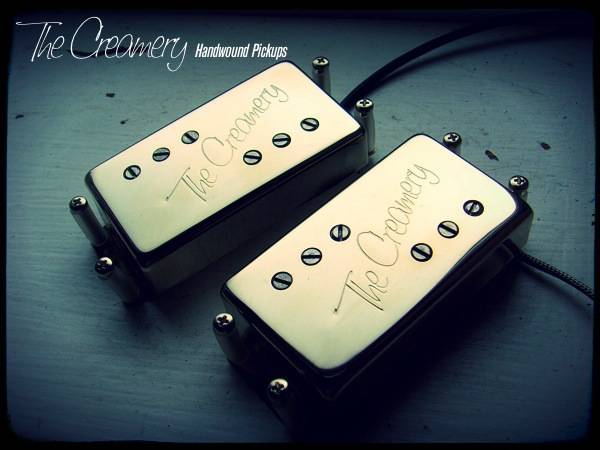

Classic '71 Wide Range Humbucker Set for Starcaster®

SKU:CLASSIC71WIDERANGESTARSET

Vintage, True Spec Replacement Wide Range Humbucker Pickup Set

Custom Made to the original '70s Design, designed especially for the Starcaster® Reissue Guitar

£265.00
Cover Style(s)
Bridge Magnets
Neck Magnets
Bridge
Neck
Lead Wire
https://www.creamery-pickups.co.uk/classic-71-wide-range-replacement-humbucker-set-for-starcaster.html
  • Vintage, True Spec Replacement Wide Range Humbucker Pickup Set

    Custom Made to the original '70s Design, designed especially for the Starcaster® Reissue Guitar


    Magnets Threaded Pole or Optional Alnico 2
    Coil Wire 42AWG
    Lead Wire Simple 3-Way or Modern 4-Way
    Bridge Output 9.6k
    Neck Output 8.7k

    The vintage Wide Range Humbucker in a Direct Drop-in Starcaster® Replacement Set

    A true replacement set for the Wide Range Humbucker reissue pickups found in the modern Starcaster® guitars. Classic fat 'Doubled Up' single coil tones - Great clarity and string definition with a bright warmth. Individual threaded pole magnets charged to around 2/3rds capacity allow you to dial in each string. A warmer mid-range than standard single coils and with a higher output, they're great for breaking up an amp.  With a great fat bridge tone sounding akin to a "doubled-up" Tele and a neck with a warm, sweet brightness. Custom-made nickel-silver baseplate, internal ferrous reflector plate, large size handmade bobbins with medium scatterwound coils of the correct size 42AWG - The Creamery Classic '71 Wide Range Humbucker for Starcaster® is a direct replacement for those modern reissues.

    Indvidual Threaded Alnico or original Spec CuNiFe Magnets

    Choose from stronger, brighter, more attacking sounding ALnico 5 - Slightly warmer, sweeter sounding Alnico 2 or my custom manufactured CuNiFe Magnets which are very similar to Alnico 2 but more vintage correct to the original WRHB design. CuNiFe does carry a higher price as they just cost more for me to have them custom manufactured but after being asked on a weekly basis for the past number of years, I finally gave in and had them manufactured.

    Calibrated/Balanced Output & Better Pole spacing for Bridge & Neck position

    Unlike the originals & reissues, I’ve made the Classic ’71 Wide Range Humbuckers for Starcaster® with a narrower 50mm pole spacing for better string definition in the neck position so the threaded magnets actually line up under the strings. It means I've had to custom manufacture separate covers for the bridge & neck position to reflect the pole spacing but I do think its worth it. To my knowledge, I'm the only one doing this at the moment - Although the original Wide Range Humbuckers are one of my favourite vintage pickups, I've always been disappointed that the neck pole spacing was the same as the bridge despite the strings having a naturally narrower spacing here.

    Custom designed Starcaster® Replacement Wide Range Humbuckers

    I prototyped a few different versions in my own Starcaster® reissue I bought and found that a slightly lower output spec worked best in the semi-hollow body, with outputs of around 9.6k for the bridge and 8.7k for the neck - a good calibrated set with much better volume balance between bridge & neck pickup as you switch through the positions - with less 'boom' at the neck.

    If you'd like the Classic '71s with the vintage higher output, you can find them here:

    I don't use 'off the shelf' parts for my Wide Range Humbuckers, all my parts are custom manufactured to my own specifications and I also don't use standard Gibson/Humbucker sized bobbins under the cover and thinner 43AWG wire to achieve the desired output reading. I make my own full-size bobbins, handwound with thicker 42AWG coil wire for that classic sparkle and clear, defined Wide Range Tone.

    PLEASE NOTE: These pickups are a direct drop-in replacement to fit the modern oversized Starcaster® Wide Range Humbuckers, if you're looking for standard/regular Gibson / PAF sized versions, have a look at my Baby '71 Wide Range Humbuckers - They're made to the same design but in the smaller, regular humbucker size. Standard Fender hardware is Chrome.

    Available with Logo or without in standard Fender Chrome, Nickel or Raw Nickel.




    You can find more details of my Creamery Custom Shop Handwound Replacement Wide Range Tele, Thinline & Deluxe Humbucker Pickups here.
